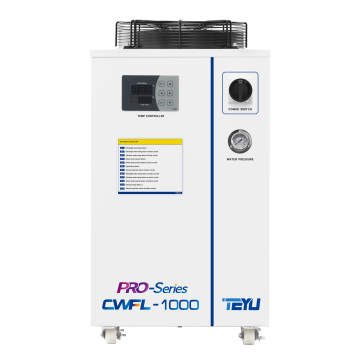

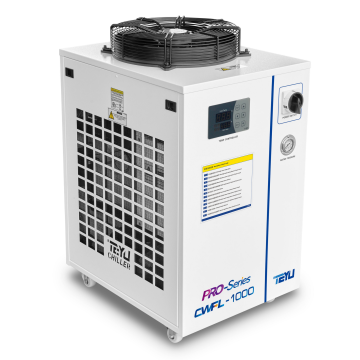

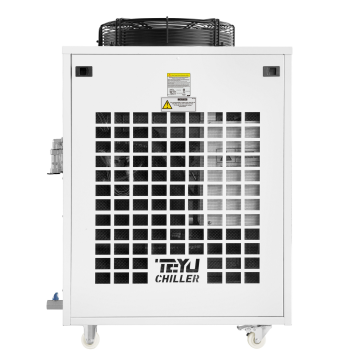

Water Chiller CWFL-1000 for 500W-1kW Fiber Laser Cutting Welding Machine

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FCA,CPT,DEQ,DDU,DDP,CIP,FAS
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Water Chiller CWFL-1000 for 500W-1kW Fiber Laser Cutting Welding Machine

Brand: Zixu

Origin: China

Model: CWFL-1000ANPTY / CWFL-1000BNPTY

Voltage: AC 1P 220-240V / AC 1P 220-2400V

Frequency: 50Hz / 60Hz

Current: 2.5~13.7A / 3.9~15A

Max. Power Consumption: 2.59kW / 3.12kW

Heater Power: 0.55kW+0.6kW

Refrigerant: R-410A/R-32

Precision: ±0.5℃

Reducer: Capillary

Pump Power: 0.37kW / 0.75kW

Tank Capacity: 14L

Inlet And Outlet: Rp1/2"+Rp1/2"

Max. Pump Pressure: 3.6 bar / 5.3 bar

Rated Flow: 2L/min + >12L/min

N.W.: 60kg / 58Kg

G.W.: 72kg / 70Kg

Dimension: 70 X 47 X 89cm (L × W × H)

Additional Info

Packaging: Wood carton,73 X 57 X 105cm (L × W × H)

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,Express Delivery,CFR,CIF,DAF,EXW,DES,FCA,CPT,DEQ,DDU,DDP,CIP,FAS

Product Description

Water Chiller CWFL-1000 for 500W-1kW Fiber Laser Cutting Welding Machine is a high-efficiency dual-circuit cooling solution designed for fiber laser cutting and welding machines up to 1kW. Each circuit operates independently—one for cooling the fiber laser and the Other for cooling the optics—eliminating the need for two separate chillers.

Water Chiller CWFL-1000 for 500W-1kW Fiber Laser Cutting Welding Machine is built with components that comply with CE, REACH, and RoHS standards. It provides precise cooling with ±0.5°C stability, helping to extend the lifespan and enhance the performance of your fiber laser system. Additionally, multiple built-in alarms protect both the Laser Chiller and the Laser Equipment. Four caster wheels offer easy mobility, providing unmatched flexibility. The CWFL-1000 chiller is the ideal cooling solution for your 500W-1000W laser cutter or welder.

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

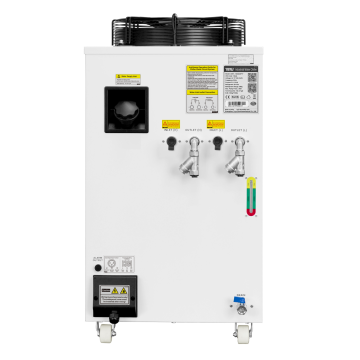

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
